WL Y Series Hydraulic Pipe Cutting Machines

WL Y Series Hydraulic Pipe Cutting Machines. Configuration and tooling are selected for your material, workpiece dimensions and production requirements.

Request a Quote

Share your material, dimensions and production requirements to confirm the right configuration.

Overview

WL Y Series Hydraulic Pipe Cutting Machines from WANLI. Share your material and production requirements to confirm the appropriate equipment and configuration.

Features and configuration

Hydraulic pipe cutting with a supported material table.
Select straight or bevel cutting capacity for the material section.
Blade and machine selection depend on tube wall thickness, section shape and material grade.

Technical specifications

Models	WL315Y / WL350Y / WL425Y
Round tube, 90° cutting (mm)	WL315Y: 70; WL350Y: 90; WL425Y: 120
Round tube, 45° cutting (mm)	WL315Y: 60; WL350Y: 70; WL425Y: 100
Solid round bar, 90° cutting (mm)	WL315Y: 20; WL350Y: 20; WL425Y: 50
Motor power (kW)	WL315Y: 2.4/3.0; WL350Y: 3.3/4.0; WL425Y: 3.3/4.0

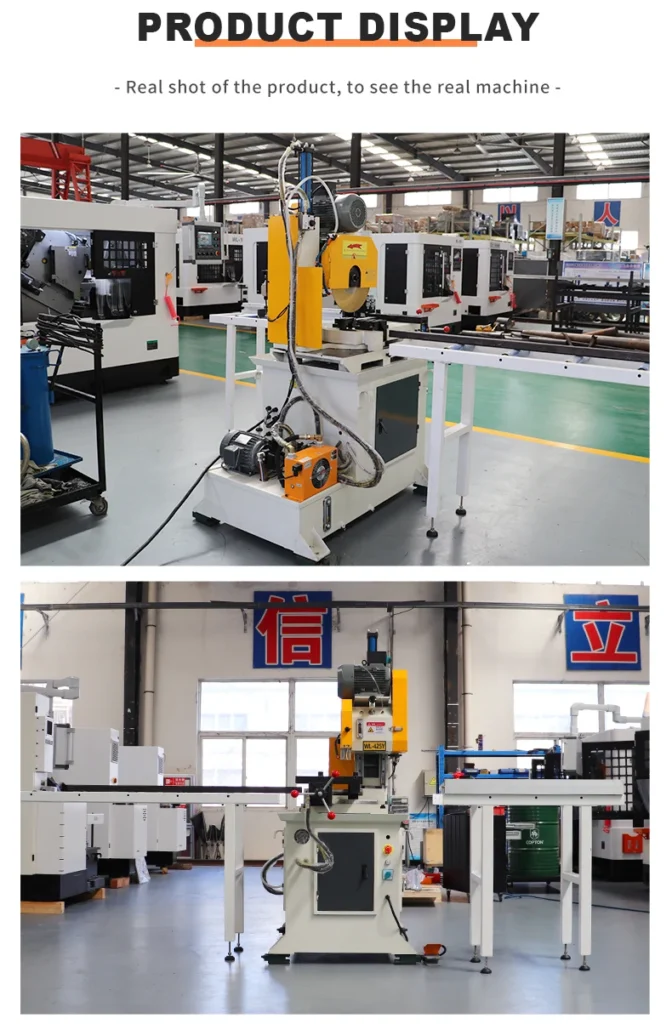

One series listing covers three model options. Photographs illustrate the hydraulic pipe-cutting family; confirm the selected machine layout and specifications in the quotation.

Discuss your application

Please provide material grade, section dimensions, stock length, finished cut length and target output. For an automated line, include material handling requirements and available floor space.

Request a technical quotation
