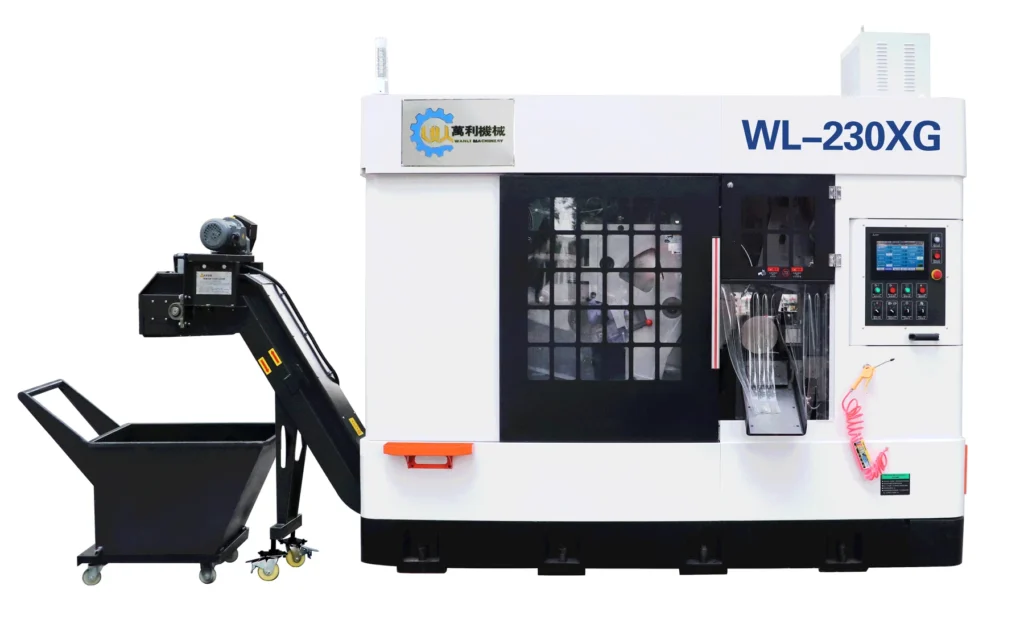

WL230XG CNC Circular Saw Machine

WL230XG CNC Circular Saw Machine. Configuration and tooling are selected for your material, workpiece dimensions and production requirements.

Request a Quote

Share your material, dimensions and production requirements to confirm the right configuration.

Overview

WL230XG CNC Circular Saw Machine from WANLI. Share your material and production requirements to confirm the appropriate equipment and configuration.

Features and configuration

Servo-controlled feeding and an enclosed cutting area.
Hydraulic material clamping and an integrated chip removal system.
Discuss material grade, section size, cut length and production requirements with WANLI before selecting a configuration.

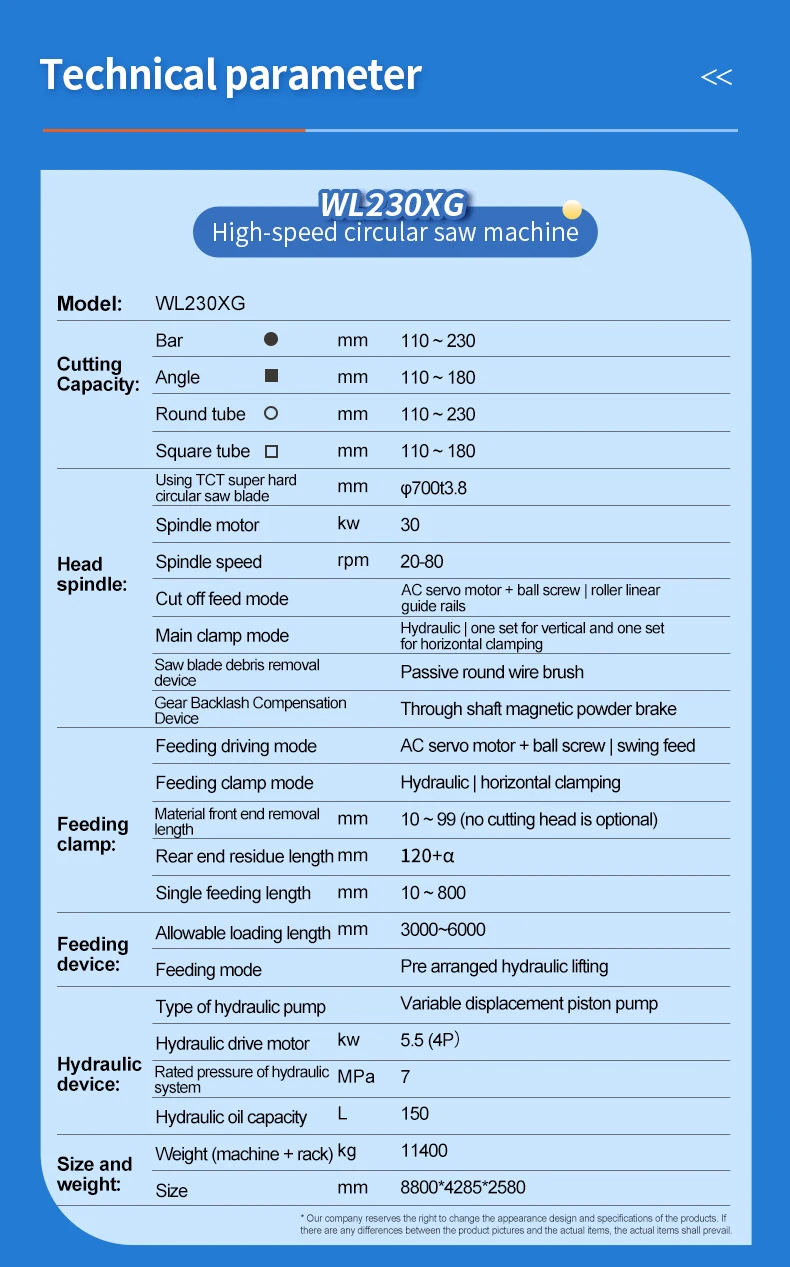

Technical specifications

Model	WL230XG
Machine type	CNC circular saw machine
Solid round bar capacity (mm)	110–230
Saw blade diameter (mm)	700
Spindle motor (kW)	30
Spindle speed (rpm)	20–80
Single feeding length (mm)	10–800
Round tube capacity (mm)	110–230
Square tube capacity (mm)	110–180
Saw blade thickness (mm)	3.8
Cutting feed drive	AC servo motor and ball screw, roller linear guides
Main clamping	Hydraulic vertical and horizontal clamping
Blade cleaning	Passive round wire brush
Backlash compensation	Through-shaft magnetic powder brake
Material feed drive	AC servo motor and ball screw, swing feed
Feeding clamp	Hydraulic horizontal clamping
Allowable loading length (mm)	3000–6000
Loading method	Pre-arranged hydraulic lifting
Hydraulic pump	Variable displacement piston pump
Hydraulic drive motor (kW)	5.5
Hydraulic system pressure (MPa)	7
Hydraulic oil capacity (L)	150
Machine and rack weight (kg)	11400
Machine and rack dimensions (mm)	8800 × 4285 × 2580

Specifications shown are from the supplied model sheet. Material suitability, tooling and final configuration are confirmed for each application.

Discuss your application

Please provide material grade, section dimensions, stock length, finished cut length and target output. For an automated line, include material handling requirements and available floor space.
